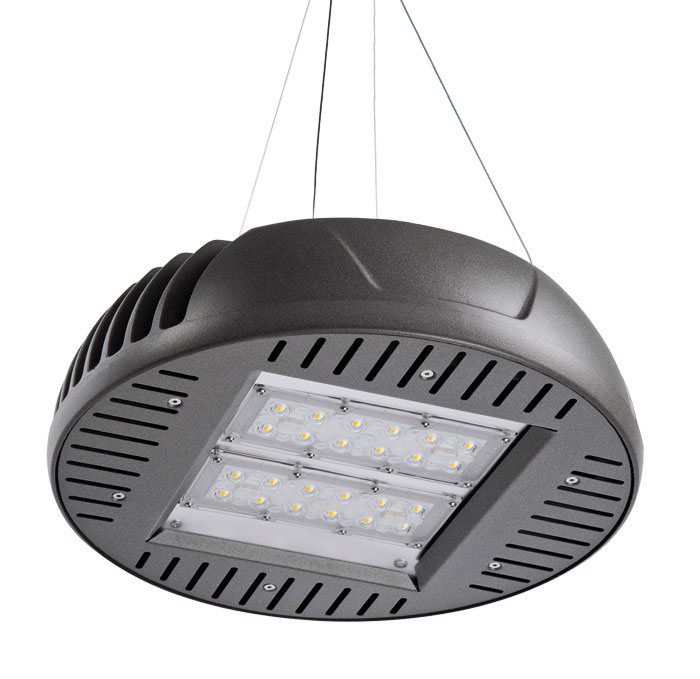

Housing and upper cover: cooling fins for maximum heat dissipation,
in die-cast aluminum.
Paintwork: thermosetting polyester powder, prior degreasing
and phosphochromatizing process that will ensure an extremely
high resistance to chemical and atmospheric agents.
Protection diffuser and lenses: multi optic transparent methacrylate,
satin finish details (PMMA anti UV UL94), 90° and
120° beam.
LED: Samsung LH508A, CRI>80, CCT 4000K.
Expected lifetime: 70.000h L80 B10 @ta25; 54.000h L80 B20 @ta40.
Cable compartment: integrated into the main body, airtight,
made of PA66-GF30, for excellent electrical and thermal insulation
of the driver.
Power supply: 220-240V 50-60Hz, with electronic ballast, surge
protection up to 6kV, NTC thermal sensor, ripple-free, Active
PFC system, SP system (overcharge and short circuit protection),
waterproof fast plug connector.
Suspension kit: 4 steel security cables (distance ceiling/product
= 44 cm), suspension ring.
Wall-ceiling rotating bracket: shaped steel 3 mm.
