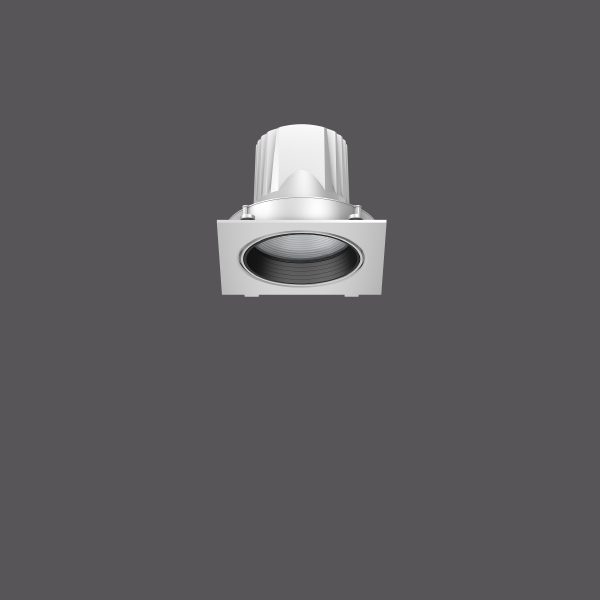

Projector unit for tool-free mounting in separate recessed frame.
Luminaire top: die-cast aluminium, powder-coated. Rotation range
356° and swivel range ± 35°. Inner cover prevents view into the false
ceiling. Black plastic ring and recessed LED to prevent glare from the
side. Optical assembly with lens made of plastic (polycarbonate) for the
best homogeneous light distribution - can be changed without tools.
UVA- and IR-free light. Magnetic click locking mechanism for quick and
convenient installation without tools: insert the recessed frame (1, 2
or 3-lamp) with clamp fastener (no tools required), push the luminaire
head with the base plate into the recessed frame and fix magnetically.
Including separate LED converter with connecting cable 6005mm. High
quality converter without flickering and stroboscopic effect. Throughwiring
box (5 pole) available as accessory. The following accessories
can be mounted without use of tools: interchangeable lenses,
honeycomb louvre, clear and frosted diffusers, white interchangeable
plastic ring. Modular design: recessed frame must be ordered
separately!
