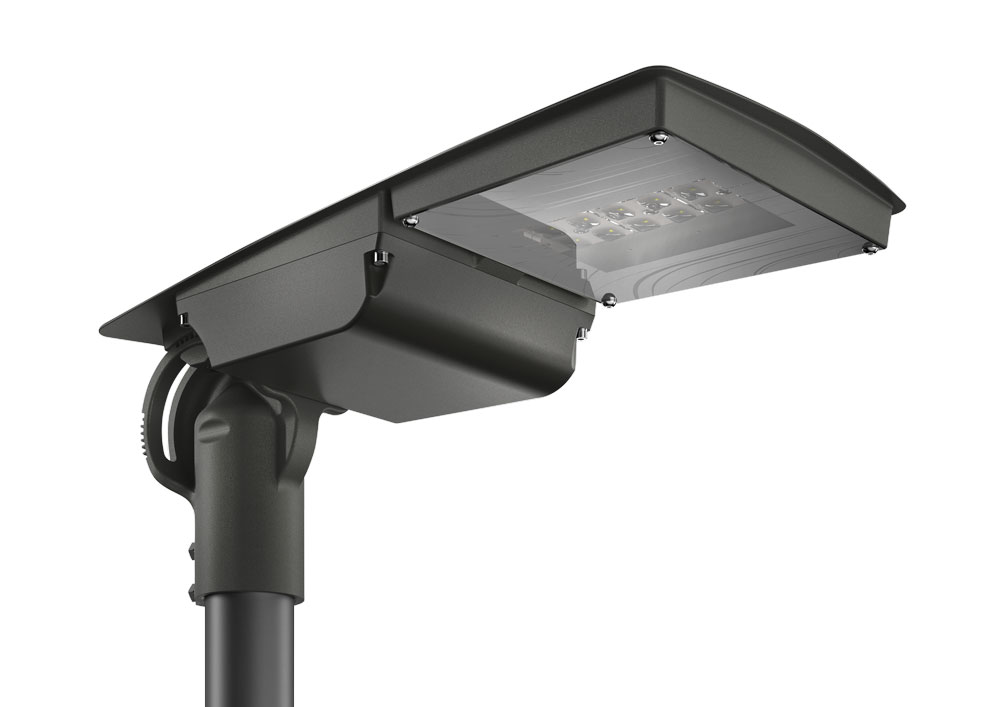

VENTO

Housing - pole mounting: die-cast aluminum.
Pole mounting: suitable for ø 60mm poles.
Paintwork: thermosetting polyester powder, prior degreasing
and phosphochromatizing process that will ensure an extremely
high resistance to chemical and atmospheric agents.
Protection glass: serigraphic extra clear tempered 4 mm.
LED modules: CRI>70, CCT 4000K.
Expected lifetime: 157.000h L80 B10 @ta25, 133.000h L80 B10
@ta50.
Lens: 2x2 multiple clusters in PMMA Anti UV UL94.
Optics: ME3M street light distribution, CYC, and AS.
Power supply: 220-240V 50-60Hz with electronic ballast, surge
protection 6/8kV. Prewired cable 2x1.5mmq supplied as standard.
Installation: Designed to be installed in a vertical or horizontal
position, without any adapter. Rotation range: +15°/-5°.
